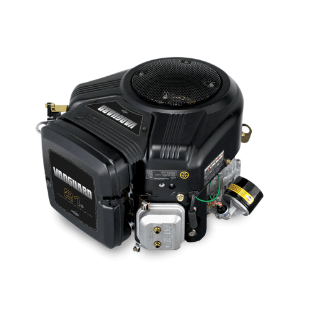

15,7 Gross kW* V-Twin Vertical Shaft Engine
15,7 Gross kW* V-Twin Vertical Shaft Engine
R0,00
The Vanguard® range of vertical shaft V-Twin engines have been designed and application engineered to meet the requirements of the most demanding applications. Available in 4 different power ratings, these VANGUARD engines offer a 3-Year Limited Global Warranty.
SPECIFICATIONS:
Engine Type
V-Twin, 4-stroke, air cooled, OHV (Overhead Valve)
Model Number
3857
Gross kW* @ 3’600 rpm
15,7
Gross HP* @ 3’600 rpm
21,0
Displacement (cc)
627
Cylinder
Cast Iron sleeve
Bore (mm)
75,5
Stroke (mm)
70,0
Fuel Tank Capacity (l)
NA
Oil Capacity (l)
1,7
Compression Ratio
8.4:1
Air Cleaner
Low Profile Dual-Clean™ Air Cleaner
Ignition System
Magnetron® Electronic Ignition
Lubrication System
Full Pressure Lubrication with Spin-on Oil Filter
Length (mm)
443
Width (mm)
406
Height (mm)
344
Dry Weight (kg)
35,0
Commercial Warranty**
3 Year Limited
Certified Power Rating
