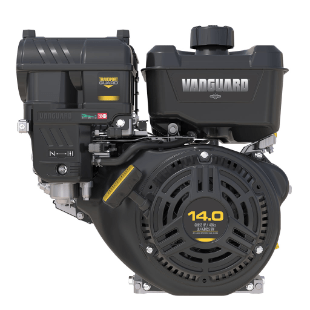

New Vanguard® 400 REDUCED TCO. INCREASED PRODUCTIVITY.

New Vanguard® 400 REDUCED TCO. INCREASED PRODUCTIVITY.

R0,00

Durable performance. Easier starting. Lower noise. Less vibration. Increased user comfort. All with a lower total cost of ownership than the competition.

The new Vanguard 400 is built from the ground up to deliver what your customers need to get the job done. It outperforms the rest with exclusive market-driven innovations like TransportGuard™ — a 3-in-1 control that eliminates oil/fuel dilution. Plus it’s a drop-fit replacement, no re-engineering required. Upgrade to the Vanguard 400 — the OHV engine that drives demand for your brand.

ALL VANGUARD ENGINE SPECIFICATIONS ARE EUROPEAN STAGE 5 AND EPA PHASE 3 EMISSIONS COMPLIANT.

Add to Quote

SPECIFICATIONS:

Engine Type
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number
25V3
Gross kW* @ 3’600 rpm
10,4
Gross HP* @ 3’600 rpm
14,0
Displacement (cc)
408
Cylinder
Cast Iron Sleeve
Bore (mm)
88,0
Stroke (mm)
67,0
Fuel Tank Capacity (l)
6,1
Oil Capacity (l)
0,94
Compression Ratio
8.3:1
Air Cleaner
Integrated Cyclonic Air Cleaner
Ignition System
CDI Ignition
Lubrication System
Splash Lubrication
Length (mm)
359
Width (mm)
444
Height (mm)
459
Dry Weight (kg)
35,5
Commercial Warranty**
3 Year Limited
